Board mount DC-DC converter with adjustable output voltage from 1.2V to 24V and a maximum output current of 5A, delivering up to 120W. Features include overvoltage protection (OVP), overtemperature protection (OTP), and short-circuit protection (SCP). Operates with an input voltage range of 6V to 36V and a wide temperature range of -40°C to 125°C. This single-output converter is housed in an LGA package with dimensions of 0.59 x 0.44 x 0.11 inches.
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM8026EV#PBF technical specifications.
General
Package/Case
LGA
Features
OVP, OTP, SCP
Height
0.11inch
Length
0.59inch
Max Input Voltage
36V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
24V
Min Output Voltage
1.2V
Number of Outputs
1
Operating Supply Current
2mA
Output Current
5A
Package Quantity
119
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Voltage - Output 1
24V
Width
0.44inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM8026EV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM8026EV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

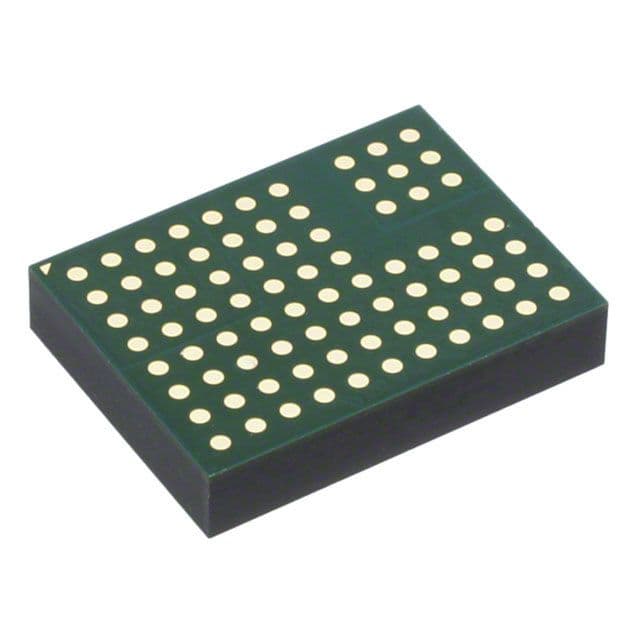

Product Images
