Adjustable DC-DC converter, outputting 1.2V to 18V with up to 600mA current. Features a wide input voltage range of 4.5V to 36V and a low operating supply current of 5µA. This integrated circuit operates across a temperature range of -40°C to 125°C and is housed in a compact BGA package.
PackageBGA
Quick Jump:
Technical Specifications
Analog Devices LTM8029EY#PBF technical specifications.
General
Package/Case
BGA
Height
0.13inch
Length
0.44inch
Max Input Voltage
36V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
600mA
Max Output Voltage
18V
Min Output Voltage
1.2V
Number of Outputs
1
Operating Supply Current
5uA
Output Current
600mA
Output Type
Adjustable
Package Quantity
273
Packaging
Tray
RoHS Compliant
Yes
Series
µModule®
Voltage - Output 1
18V
Width
0.25inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM8029EY#PBF Datasheet
Download the complete datasheet for Analog Devices LTM8029EY#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

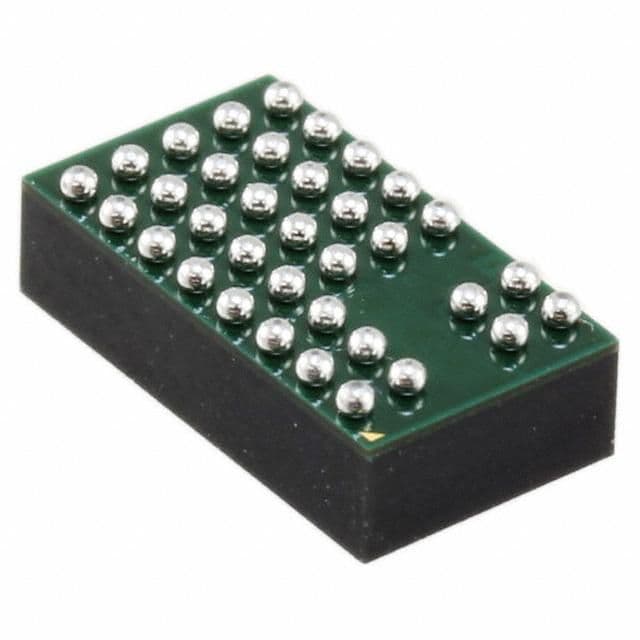

Product Images
