Board mount DC-DC converter with a 1A maximum output current and adjustable output voltage from 800mV to 10V. Features a wide input voltage range of 3.6V to 36V, a maximum operating temperature of 125°C, and a compact LGA package measuring 0.59 x 0.35 x 0.11 inches. This RoHS compliant component offers a single output and operates with a low 60µA supply current.
PackageLGA
Quick Jump:
Technical Specifications
Analog Devices LTM8031MPV#PBF technical specifications.
General
Package/Case
LGA
Height
0.11inch
Length
0.59inch
Max Input Voltage
36V
Min Input Voltage
3.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
10V
Min Output Voltage
800mV
Max Supply Voltage
36V
Number of Outputs
1
Operating Supply Current
60uA
Output Current
1A
Output Voltage
10V
Package Quantity
170
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
µModule®
Voltage - Output 1
10V
Width
0.35inch
Compliance
RoHS
Compliant
Datasheet
Analog Devices LTM8031MPV#PBF Datasheet
Download the complete datasheet for Analog Devices LTM8031MPV#PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

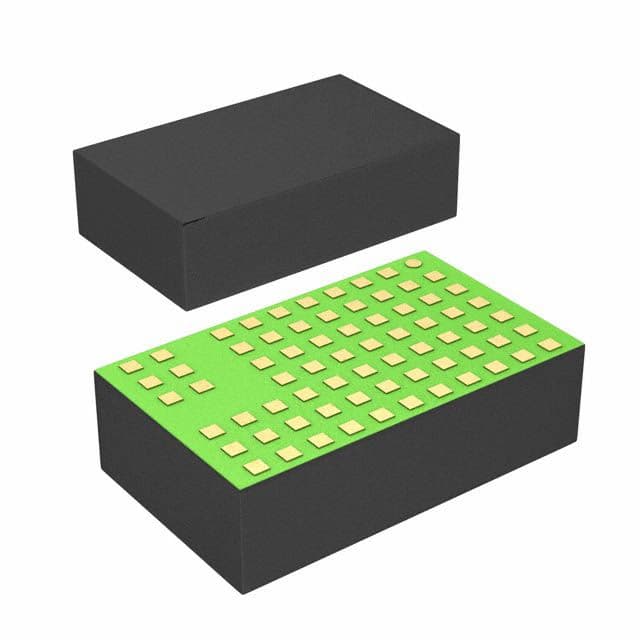

Product Images
