Single-supply, rail-to-rail input/output operational amplifier featuring a 4.25MHz gain bandwidth product and 4V/µs slew rate. This general-purpose amplifier offers a low input offset voltage of 100µV and input bias current of 80nA, with an input voltage noise density of 3.9nV/√Hz. It operates from a minimum dual supply voltage of 1.5V up to a maximum of 18V, or a single supply from 3V to 36V, consuming 2mA quiescent current. The amplifier boasts a high common mode rejection ratio and power supply rejection ratio of 90dB, with a voltage gain of 107.6dB. Packaged in a compact 5mm x 4mm x 1.5mm surface-mount case, it is suitable for operation across a wide temperature range of -40°C to 125°C.
PackageR
Current1.5mA
Quick Jump:
Technical Specifications
Analog Devices OP184FSZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
4.25MHz
Package/Case
R
Common Mode Rejection Ratio
90dB
Dual Supply Voltage
9V
Gain Bandwidth Product
4.25MHz
Height
1.5mm
Input Bias Current
80nA
Input Offset Voltage (Vos)
100uV
Input Voltage Noise Density
3.9nV/sqrt Hz
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
3V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
2mA
Operating Supply Voltage
28V
Output Current per Channel
10mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
90dB
Quiescent Current
2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
4us
Slew Rate
4V/µs
Supply Current
1.5mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
3.25MHz
Voltage Gain
107.6dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices OP184FSZ Datasheet
Download the complete datasheet for Analog Devices OP184FSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

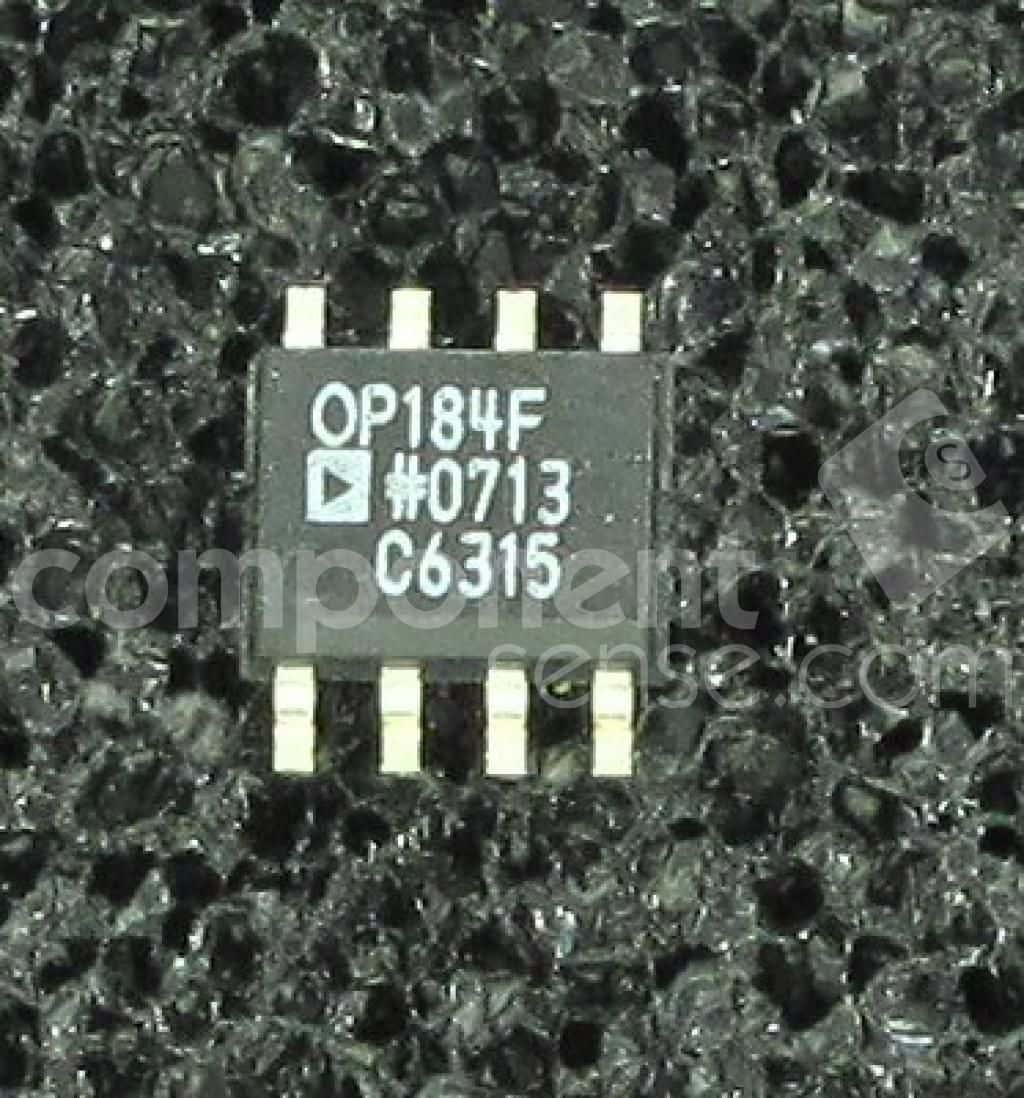

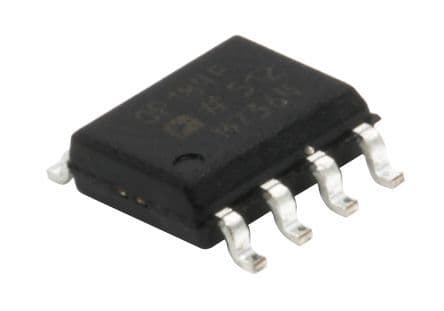

Product Images
