Dual-supply operational amplifier featuring a 3.4MHz bandwidth and 1.2V/µs slew rate. Offers low noise performance with a 100µV input offset voltage and 600nA input bias current. Supports dual supply voltages from ±2V to ±15V, with a maximum supply voltage of ±18V and a single supply range of 4V to 36V. Achieves a 96dB common mode rejection ratio and 100dB power supply rejection ratio. Housed in a 5mm x 4mm x 1.5mm package.
PackageR
Current3mA
Quick Jump:
Technical Specifications
Analog Devices OP213FSZ technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
3.4MHz
Package/Case
R
Common Mode Rejection Ratio
96dB
Dual Supply Voltage
15V
Gain Bandwidth Product
3.4MHz
Height
1.5mm
Input Bias Current
600nA
Input Offset Voltage (Vos)
100uV
Lead Free
Contains Lead
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2V
Max Input Voltage
14V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
2.7mA
Max Supply Voltage
36V
Min Supply Voltage
4V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
6mA
Operating Supply Voltage
5V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
98
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
100dB
Quiescent Current
3mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Settling Time
9us
Slew Rate
1.2V/µs
Supply Current
3mA
Supply Type
Single, Dual
Technology
BICMOS
Unity Gain Bandwidth Product
3.5MHz
Voltage Gain
126.02dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices OP213FSZ Datasheet
Download the complete datasheet for Analog Devices OP213FSZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

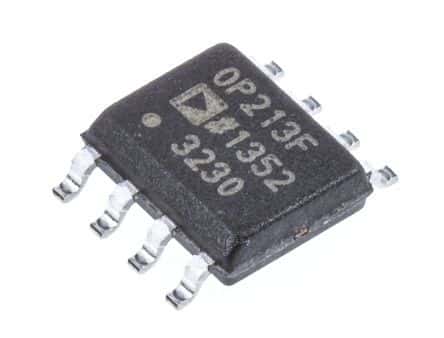

Product Images
