PackageLFCSP EP
Current8mA
MountingSurface Mount
Power1.2W
Quick Jump:
Technical Specifications
Analog Devices SSM2302CPZ-REEL7 technical specifications.
General
Package/Case
LFCSP EP
Common Mode Rejection Ratio
55dB
Input Type
DIFFERENTIAL
Lead Free
Contains Lead
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Power
1.4W
Max Supply Voltage
5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Channels
2
Operating Supply Voltage
3V
Output Power
1.2W
Package Quantity
1500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
85dB
Quiescent Current
8mA
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
8mA
Supply Type
Single
Voltage Gain
12dB
Compliance
RoHS
Compliant
Datasheet
Analog Devices SSM2302CPZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices SSM2302CPZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

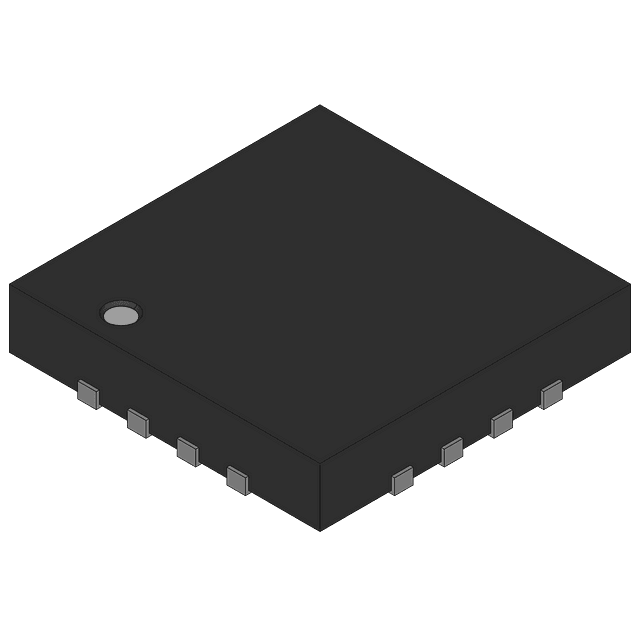

Product Images
