Analog voltage output temperature sensor in SOT-23 package, measuring 3mm x 1.7mm x 1.3mm. Operates from a 2.7V to 5.5V supply with a typical supply current of 50uA. Features a wide operating temperature range of -40°C to 125°C. RoHS compliant and supplied on tape and reel in quantities of 3000.
PackageSOT-23
Current50uA
Quick Jump:
Technical Specifications
Analog Devices TMP36GRTZ-REEL7 technical specifications.
General
Package/Case
SOT-23
Height
1.3mm
Interface
Analog
Lead Free
Contains Lead
Length
3mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Operating Supply Current
50uA
Output Current
50uA
Output Type
Analog
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
50uA
Width
1.7mm
Compliance
RoHS
Compliant
Datasheet
Analog Devices TMP36GRTZ-REEL7 Datasheet
Download the complete datasheet for Analog Devices TMP36GRTZ-REEL7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

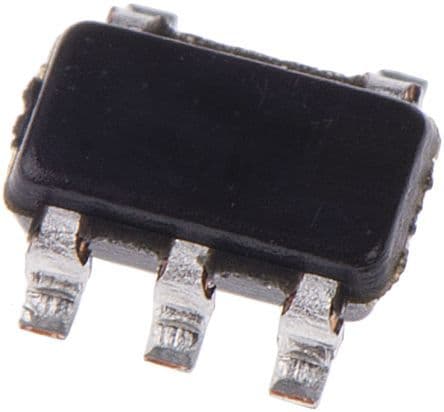

Product Images
