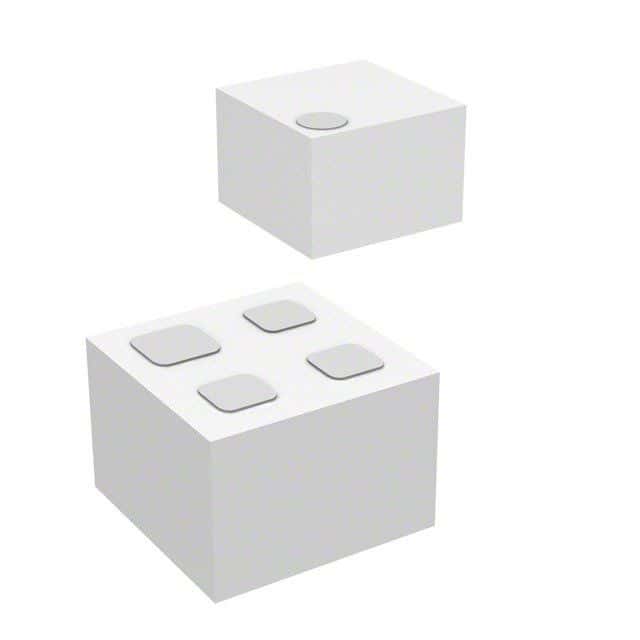

The BD2425NNRF is a surface mount RF transformer with an impedance of 50 ohms and an insertion loss of 1.25 dB. It has a maximum operating temperature of 85°C and a minimum operating temperature of -55°C. The transformer is packaged in a 0404 case and is available in quantities of 4000. It is RoHS compliant and suitable for use in surface mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Anaren BD2425NNRF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0404 |
| Case Code (Metric) | 1010 |
| Package/Case | 0404 |
| Depth | 1.05mm |
| Impedance | 50R |
| Insertion Loss | 1.25dB |
| Length | 1.05mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Xinger® |
| Termination | SMD/SMT |
| RoHS | Compliant |
