Surface mount RF directional coupler operating from 1.7 to 2.2 GHz. Features 0.17dB insertion loss and 22.5dB return loss. Designed for 2W maximum power dissipation, housed in an 0805 (2012 metric) package. Suitable for a wide temperature range of -55°C to 85°C. Packaged on tape and reel for automated assembly.
Frequency2.2GHz
Package0805
Quick Jump:
Technical Specifications
Anaren DC1722J5020AHF technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Frequency
2.2GHz
Insertion Loss
0.17dB
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Package Quantity
4000
Packaging
Tape and Reel
Return Loss
22.5dB
RoHS Compliant
Yes
Series
Xinger®
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Anaren DC1722J5020AHF Datasheet
Download the complete datasheet for Anaren DC1722J5020AHF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

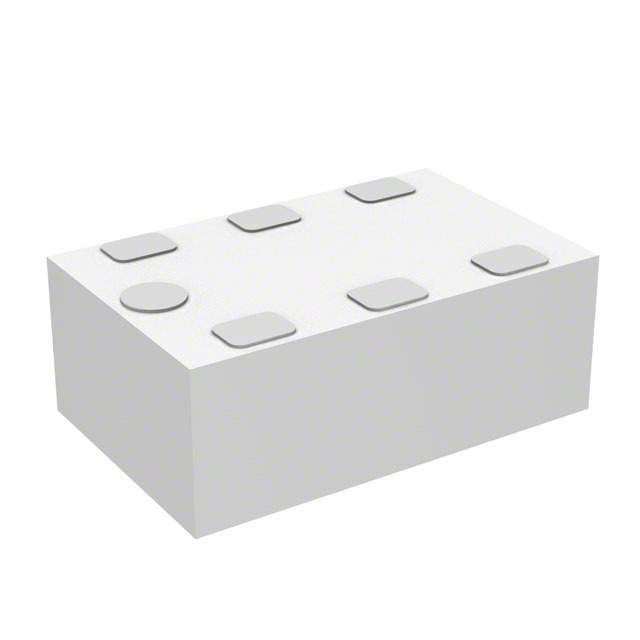

Product Images
