This standard round toggle switch features a brass and chrome actuator with a silver contact material. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The switch is rated for 50000 electrical cycles and 150000 mechanical cycles. It is compliant with RoHS regulations and is available in a lead-free version.
MountingPanel
Quick Jump:
Technical Specifications
Apem 12146A technical specifications.
General
| Actuator Length | 17.3mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Material | Silver |
| Electrical Life | 50000Cycles |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 150000Cycles |
| Mount | Panel |
| Orientation | Straight |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 12000 |
| Switch Function | On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Apem 12146A Datasheet
Download the complete datasheet for Apem 12146A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

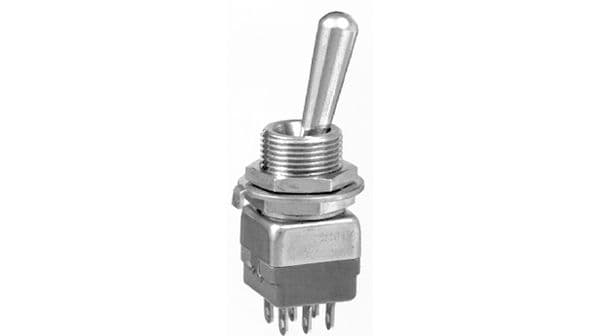

Product Images
