This SPST/SPDT toggle switch features a brass actuator with a length of 24mm and is rated for 15A. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The switch is designed for panel or bushing mount and has a quick connect termination. It is rated for 10000 cycles of electrical life and meets IP67, waterproof, and dust-tight ratings.
Current Rating15A
MountingPanel, Bushing
Quick Jump:
Technical Specifications
Apem 3531033G000 technical specifications.
General
| Actuator Length | 24mm |
| Actuator Material | Brass |
| Current Rating | 15A |
| Electrical Life | 10000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Bushing |
| Package Quantity | 25 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | 3500 |
| Switch Function | On-Off |
| Termination | Quick Connect |
| Throw Configuration | SPST, SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
Apem 3531033G000 Datasheet
Download the complete datasheet for Apem 3531033G000 to view detailed technical specifications.
No datasheet is available for this part.

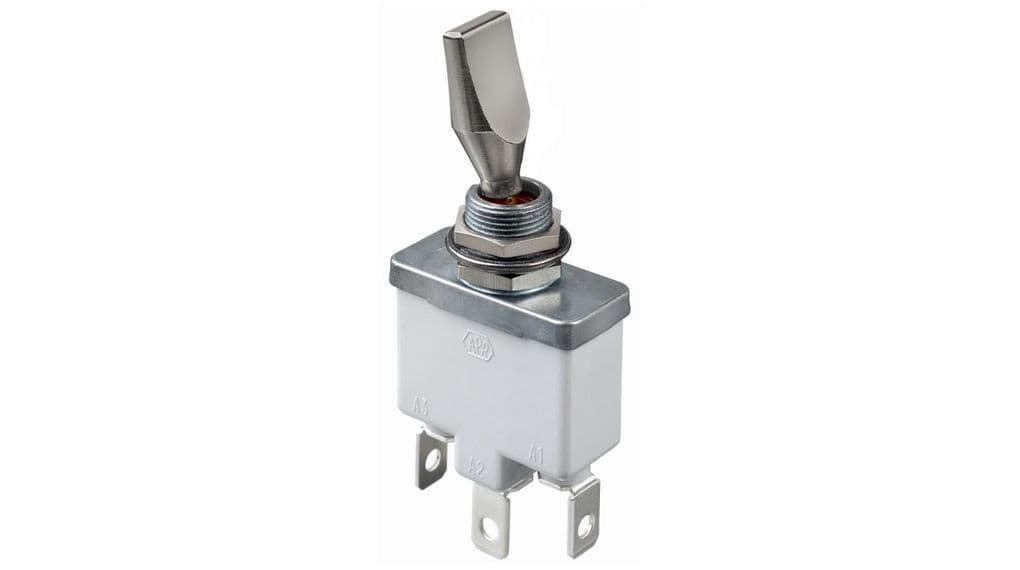

Product Images
