Apem
5636CDB
Switch Toggle ON ON SPDT Round Lever Solder Lug 20VAC 20VDC 0.4VA Panel Mount with Threads
MountingPanel
Quick Jump:
Technical Specifications
Apem 5636CDB technical specifications.
General
Actuator Length
10.5mm
Actuator Material
Brass
Actuator Type
Standard Round
Contact Current Rating
400mA
Contact Material
Brass, Gold
Contact Plating
Gold
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mechanical Life
100000Cycles
Mount
Panel
Orientation
Straight
Packaging
Bulk
Series
5000
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Apem 5636CDB Datasheet
Download the complete datasheet for Apem 5636CDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

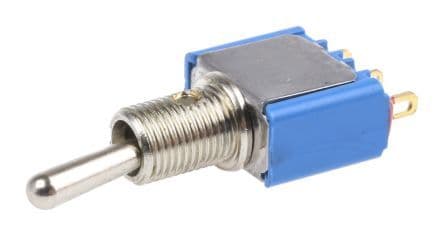

Product Images
