Apem
5638AB
Toggle Switch, SPDT, Latched And Momentary, 4A, 30VDC, Solder Terminal, Standard Type Actuator, Panel Mount-threaded
MountingPanel
Quick Jump:
Technical Specifications
Apem 5638AB technical specifications.
General
Actuator Length
10.5mm
Actuator Material
Brass
Actuator Type
Standard Round
Contact Material
Silver
Electrical Life
50000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Package Quantity
50
Packaging
Tray
RoHS Compliant
Yes
Series
5000
Switch Function
On-Off-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Apem 5638AB Datasheet
Download the complete datasheet for Apem 5638AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

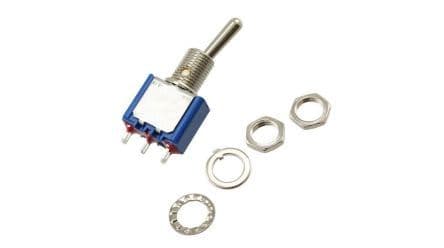

Product Images
