DPDT toggle switch featuring a latched mechanism and solder terminals. Rated for 4A at 30VDC and 125V/250V AC, with a silver contact material. Offers a mechanical life of 100,000 cycles and an electrical life of 50,000 cycles. Operates within a temperature range of -40°C to 85°C. Includes a standard round, chrome-plated brass actuator with a 10.5mm length, suitable for panel mounting.
MountingPanel
Quick Jump:
Technical Specifications
Apem 5649AB technical specifications.
General
| Actuator Color | Chrome |
| Actuator Length | 10.5mm |
| Actuator Material | Brass |
| Actuator Type | Standard Round |
| Contact Material | Silver |
| Electrical Life | 50000Cycles |
| Illumination Type | Illuminated, Non-Illuminated |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Panel |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 5000 |
| Switch Function | On-Off-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Apem 5649AB Datasheet
Download the complete datasheet for Apem 5649AB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

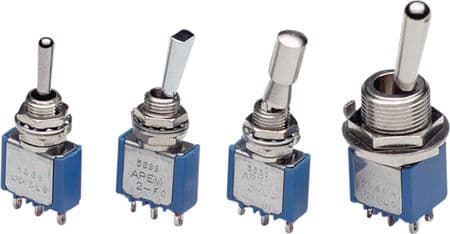

Product Images
