SPDT toggle switch featuring a straight, non-illuminated standard round brass actuator with a 17.5mm length. This panel-mount switch offers a 15A current rating and a 125V AC / 24V DC voltage rating, with a solder termination. Designed for durability, it boasts an electrical life of 6000 cycles and operates within a temperature range of -20°C to 55°C.
PackageMetal
Current Rating15A
MountingPanel
Quick Jump:
Technical Specifications
Apem 639H/2 technical specifications.
General
| Actuator Length | 17.5mm |
| Actuator Material | Brass |
| Actuator Type | Standard Round |
| Package/Case | Metal |
| Contact Current Rating | 10A |
| Contact Material | Silver, Nickel |
| Contact Plating | Silver |
| Current Rating | 15A |
| Electrical Life | 6000Cycles |
| Illumination Type | Illuminated, Non-Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Mount | Panel |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | 600H |
| Switch Function | On-Off-On |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Apem 639H/2 Datasheet
Download the complete datasheet for Apem 639H/2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

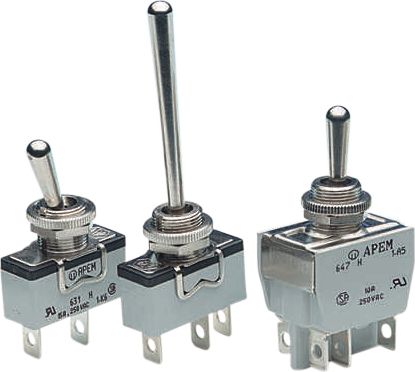

Product Images
