Apem
AV091003C200
Switch Push Button N.O. SPST Flat Button 2A 48VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Current Rating2A
MountingPanel, Front
Quick Jump:
Technical Specifications
Apem AV091003C200 technical specifications.
General
Actuator Length
0mm
Actuator Material
Brass
Actuator Type
Round, Button, Flush
Contact Material
Brass
Contact Plating
Silver
Current Rating
2A
Electrical Life
10000Cycles
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
48V
Mount
Panel, Front
Orientation
Straight
Package Quantity
40
Packaging
Bulk
Ratings
IP54, Water Resistant
Series
AV
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
DC Rated Voltage
48V
Compliance
RoHS
Compliant
Datasheet
Apem AV091003C200 Datasheet
Download the complete datasheet for Apem AV091003C200 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

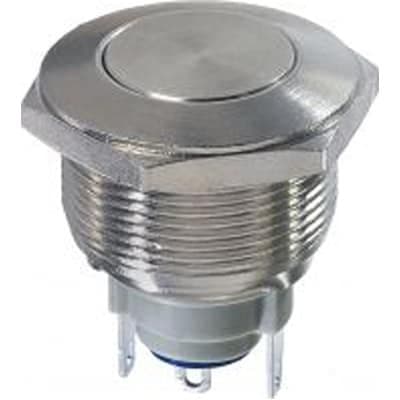

Product Images
