Apem
AV09C703D200K
Pushbutton Switch, SPST, Off-(on), Momentary, 0.05A, 24VDC, Solder Lug Terminal, Panel Mount
Current Rating50mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Apem AV09C703D200K technical specifications.
General
Actuator Length
0mm
Actuator Material
Brass
Actuator Type
Round, Button, Flush
Contact Current Rating
5A
Contact Plating
Nickel, Gold
Current Rating
50mA
Electrical Life
1000000Cycles
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Max Voltage Rating (DC)
24V
Mechanical Life
100000Cycles
Mount
Panel, Front
Orientation
Straight
Package Quantity
40
Packaging
Bulk
Ratings
IP65, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
AV
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Apem AV09C703D200K Datasheet
Download the complete datasheet for Apem AV09C703D200K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

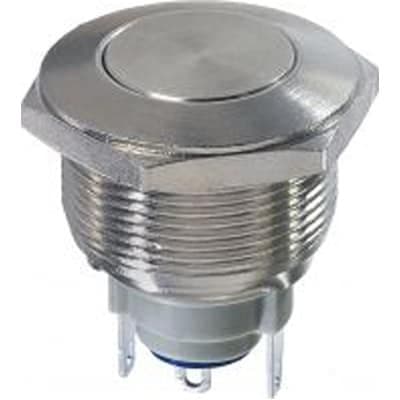

Product Images
