Apem
IPC3FAD5
Switch Push Button N.O. SPST Square Plunger 5A 48VAC 48VDC Momentary Contact Panel Mount Wire Lead Automotive
Current Rating500mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Apem IPC3FAD5 technical specifications.
General
Actuator Type
Square, Button
Color
Yellow
Contact Current Rating
5A
Contact Material
Gold, Silver
Current Rating
500mA
Electrical Life
500000Cycles
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Panel, Front
Package Quantity
25
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Series
IP
Switch Function
Off-Mom
Termination
Wire Leads
Throw Configuration
SPST
Voltage Rating (AC)
48V
DC Rated Voltage
48V
Compliance
RoHS
Compliant
Datasheet
Apem IPC3FAD5 Datasheet
Download the complete datasheet for Apem IPC3FAD5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

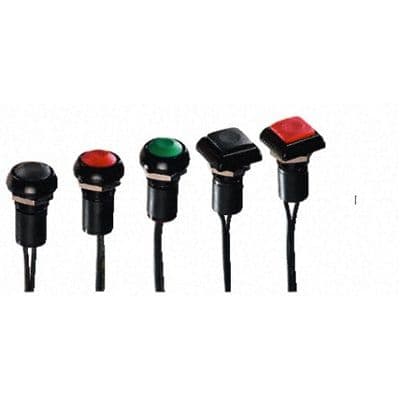

Product Images
