Apem
IPR1SAD2101
Switch Push Button OFF ON SPST Round Plunger 4A 72VDC Latching Solder Lug Panel Mount Automotive
Package125
Current Rating2A
MountingBushing, Panel, Front
Quick Jump:
Technical Specifications
Apem IPR1SAD2101 technical specifications.
General
Actuator Type
Round, Button
Package/Case
125
Contact Current Rating
5A
Contact Material
Gold, Silver
Contact Plating
Gold
Current Rating
2A
Electrical Life
200000Cycles
Flammability Rating
UL94 V-0
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Bushing, Panel, Front
Package Quantity
25
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
IP
Switch Function
Off-On
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Apem IPR1SAD2101 Datasheet
Download the complete datasheet for Apem IPR1SAD2101 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

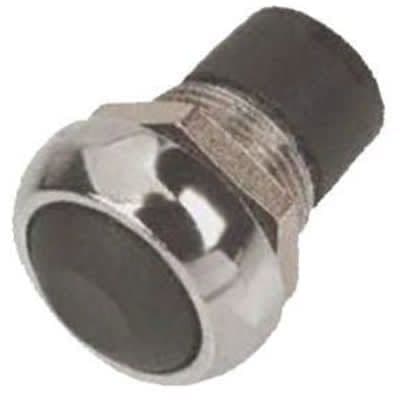

Product Images
