Illuminated pushbutton switch featuring a SPST-NO throw configuration. Offers a 5A contact current rating with gold-plated silver and gold contacts. Rated for 48V AC and 48V DC, with a 500mA current rating. Designed for panel mounting with straight wire lead termination and an orange polyamide round button actuator. Boasts IP67, waterproof, and dust-tight ratings, with electrical and mechanical life cycles of 500,000 and 1,000,000 respectively. Operates within a temperature range of -40°C to 125°C.
Current Rating500mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Apem IPR3FAD9 technical specifications.
General
Actuator Color
Orange
Actuator Length
2mm
Actuator Material
Polyamide
Actuator Type
Round, Button
Contact Current Rating
5A
Contact Material
Gold, Silver
Contact Plating
Gold
Current Rating
500mA
Electrical Life
500000Cycles
Max Operating Temperature
125°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000000Cycles
Min Operating Temperature
-40°C
Mount
Panel, Front
Orientation
Straight
Package Quantity
25
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Series
IP
Switch Function
Off-Mom
Termination
Wire Leads
Throw Configuration
SPST
Voltage Rating (AC)
48V
DC Rated Voltage
48V
Compliance
RoHS
Compliant
Datasheet
Apem IPR3FAD9 Datasheet
Download the complete datasheet for Apem IPR3FAD9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

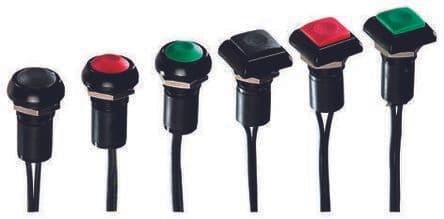

Product Images
