This 15A DPST on-off rocker switch has a silver contact material and is rated for 10000 electrical cycles and 100000 mechanical cycles. It operates between -40°C and 85°C and is available in a panel mount configuration with a snap-in design. The switch is illuminated with a green LED and has a flammability rating of UL94 V-0 and an IP65 rating for water resistance and dust tightness.
Current Rating15A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Apem KG412A2XEA26X3 technical specifications.
General
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Current Rating | 15A |
| Electrical Life | 10000Cycles |
| Flammability Rating | UL94 V-0 |
| Illumination Color | Green |
| Illumination Type | LED, Illuminated |
| Max Operating Temperature | 85°C |
| Mechanical Life | 100000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel, Snap in |
| Package Quantity | 40 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| Series | KG |
| Switch Function | On-Off |
| Termination | Solder |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Apem KG412A2XEA26X3 Datasheet
Download the complete datasheet for Apem KG412A2XEA26X3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

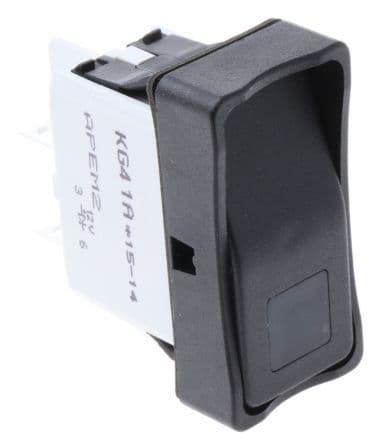

Product Images
