Current Rating100mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Apem MHPS2283 technical specifications.
General
Actuator Length
5.5mm
Actuator Material
Acetal
Contact Current Rating
100mA
Contact Material
Bronze
Contact Plating
Silver
Current Rating
100mA
Electrical Life
10000Cycles
Max Operating Temperature
65°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
30V
Mount
Through Hole
Operating Force
1.76N
Orientation
Straight
Package Quantity
2000
Packaging
Bulk
RoHS Compliant
Yes
Row Spacing
5.4mm
Series
MHPS
Switch Function
On-On
Terminal Pitch
2.5mm
Termination
PC Pin
Throw Configuration
DPDT
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Apem MHPS2283 Datasheet
Download the complete datasheet for Apem MHPS2283 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

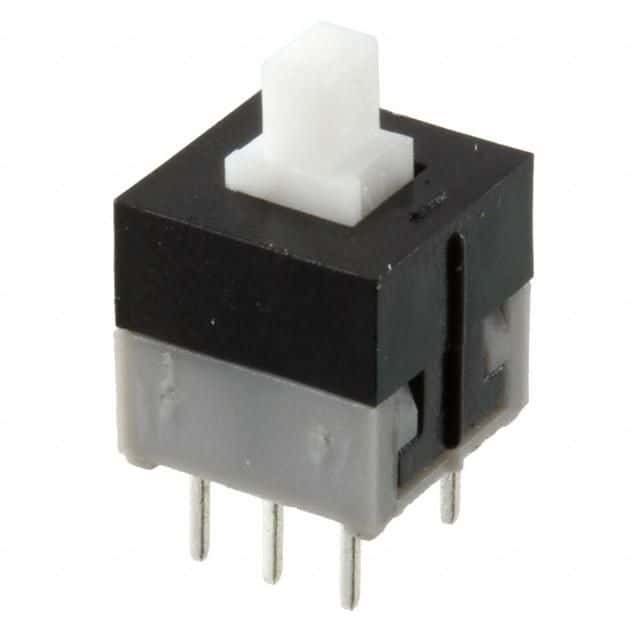

Product Images
