Apem
MJTP1106SATR
Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 1.86N, Solder Terminal, Surface Mount-straight
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Apem MJTP1106SATR technical specifications.
General
Actuator Material
Nylon, Polyamide, PA46
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Force
180gf
Package Quantity
1800
Packaging
Cut Tape
RoHS Compliant
Yes
Series
MJTP
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Apem MJTP1106SATR Datasheet
Download the complete datasheet for Apem MJTP1106SATR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

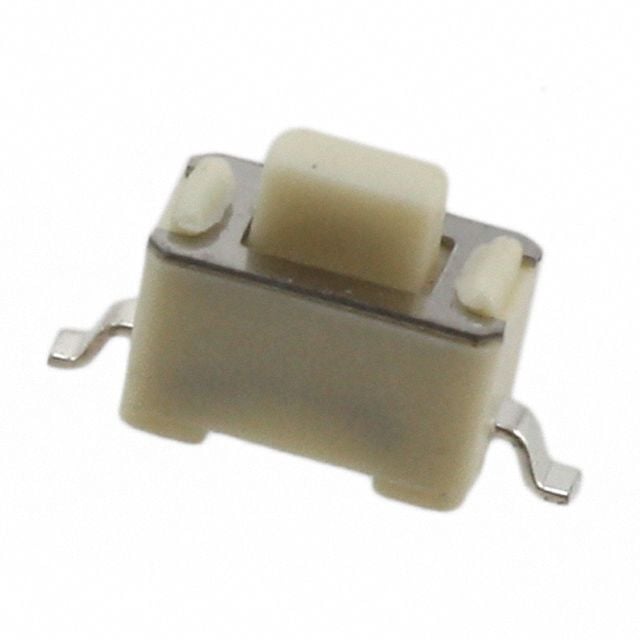

Product Images
