Surface mount keypad switch featuring SPST, momentary-tactile action. Rated for 0.05A at 12VDC, with a 1.86N operating force and 0.25mm travel. Constructed with bronze and silver-plated stainless steel contacts, it offers 100,000 electrical and mechanical cycles. The nylon actuator measures 0.8mm, and the component is supplied on tape and reel.
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Apem MJTP1106STR technical specifications.
General
Actuator Length
0.8mm
Actuator Material
Nylon, Polyamide, PA46
Package/Case
SMD/SMT
Color
Black
Contact Material
Bronze, Stainless Steel
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Surface Mount
Operating Force
180gf
Orientation
Straight
Package Quantity
1800
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
MJTP
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Apem MJTP1106STR Datasheet
Download the complete datasheet for Apem MJTP1106STR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

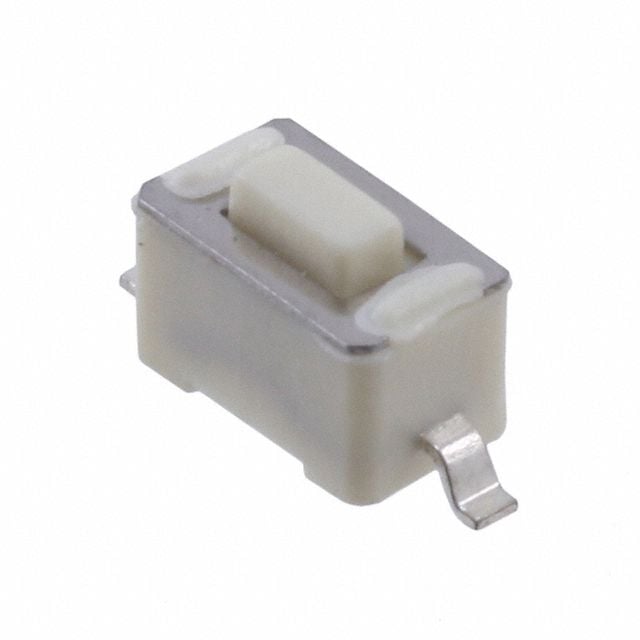

Product Images
