Surface mount keypad switch featuring SPST, momentary-tactile action. Rated for 0.05A at 12VDC with a 1.86N operating force and 0.25mm travel. Constructed with bronze and silver-plated stainless steel contacts, it offers 100,000 electrical and mechanical cycles. The nylon actuator measures 1.4mm, and the component operates within a -20°C to 70°C temperature range. Packaged on tape and reel, this RoHS compliant switch is designed for straight, surface-mount termination.
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Apem MJTP1138ATR technical specifications.
General
Actuator Length
1.4mm
Actuator Material
Nylon, Polyamide, PA46
Actuator Type
Standard
Contact Material
Bronze, Stainless Steel
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
12V
Mechanical Life
100000Cycles
Mount
Surface Mount
Operating Force
160gf
Orientation
Straight
Package Quantity
1250
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
MJTP
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Apem MJTP1138ATR Datasheet
Download the complete datasheet for Apem MJTP1138ATR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

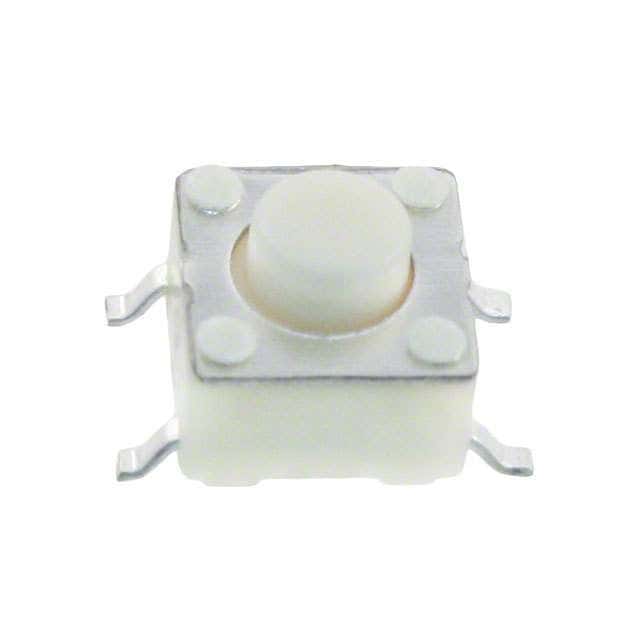

Product Images
