Apem
MPB11106
Switch Push Button N.O. SPST Round Plunger 0.3A 125VAC Momentary Contact Solder Lug Panel Mount
Current Rating300mA
MountingPanel
Quick Jump:
Technical Specifications
Apem MPB11106 technical specifications.
General
Actuator Color
Red
Actuator Material
ACRYLONITRILE BUTADIENE STYRENE
Actuator Type
Round, Button
Contact Material
Bronze, Brass
Contact Plating
Silver
Current Rating
300mA
Electrical Life
10000Cycles
Lead Free
Lead Free
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
125V
Mechanical Life
10000Cycles
Mount
Panel
Orientation
Straight
Packaging
Bulk
RoHS Compliant
Yes
Series
MPB
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Apem MPB11106 Datasheet
Download the complete datasheet for Apem MPB11106 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

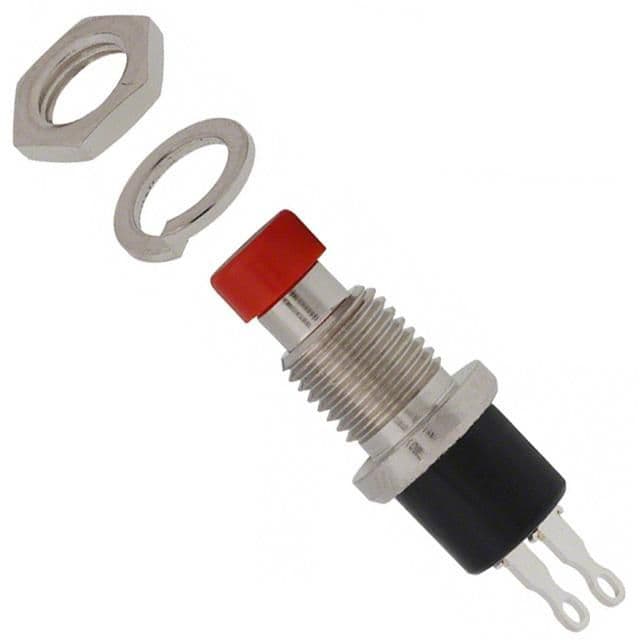

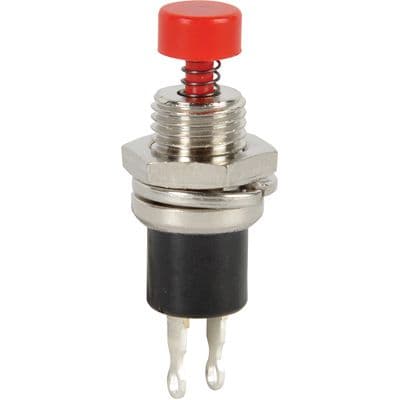

Product Images
