4-position rotary coded switch featuring a latched, on-on switching action. This through-hole mounted component offers a straight orientation with a solder terminal and an arrow-shaped slot actuator. Constructed with a thermoplastic body and polyoxymethylene actuator, it utilizes gold and nickel plated bronze contacts. Rated for 0.4A and 24VDC, it boasts a mechanical life of 10,000 cycles and is RoHS compliant.
Current Rating400mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Apem PT65121 technical specifications.
General
Actuator Material
Polyoxymethylene
Actuator Type
Rotary
Body Material
Thermoplastic
Contact Material
Bronze
Contact Plating
Gold, Nickel
Current Rating
400mA
Depth
10mm
Flammability Rating
UL94 V-0
Length
10mm
Max Current Rating
150mA
Max Operating Temperature
70°C
Mechanical Life
10000Cycles
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mount
Through Hole
Number of Positions
4
Orientation
Straight
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
PT65
Switching Current
400mA
Switching Voltage
24V
Terminal Pitch
2.54mm
Termination
PC Pin
Throw Configuration
SP4T
DC Rated Voltage
24V
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
Apem PT65121 Datasheet
Download the complete datasheet for Apem PT65121 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

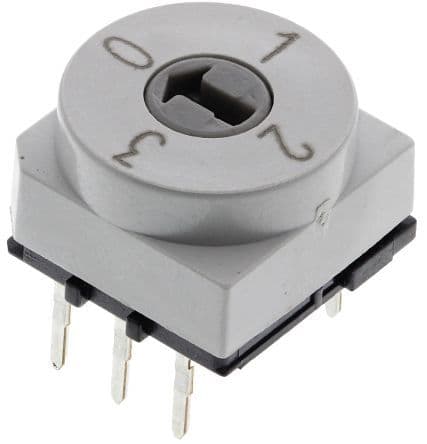

Product Images
