Apem
PT65521L508
Rotary Coded Switch, 4 Positions, Decimal, On-on, Latched, 0.4A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Segment Wheel Actuator, Through Hole-right Angle
MountingThrough Hole
Quick Jump:
Technical Specifications
Apem PT65521L508 technical specifications.
General
Actuator Length
4.4mm
Actuator Material
Polyoxymethylene
Actuator Type
Rotary
Body Material
Thermoplastic
Contact Material
Bronze
Contact Plating
Gold, Nickel
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
24V
Mechanical Life
10000Cycles
Mount
Through Hole
Number of Positions
4
Orientation
Right Angle
Package Quantity
50
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
PT65
Terminal Pitch
2.54mm
Termination
PC Pin
Throw Configuration
SP4T
Washable
Yes
Compliance
RoHS
Compliant
Datasheet
Apem PT65521L508 Datasheet
Download the complete datasheet for Apem PT65521L508 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

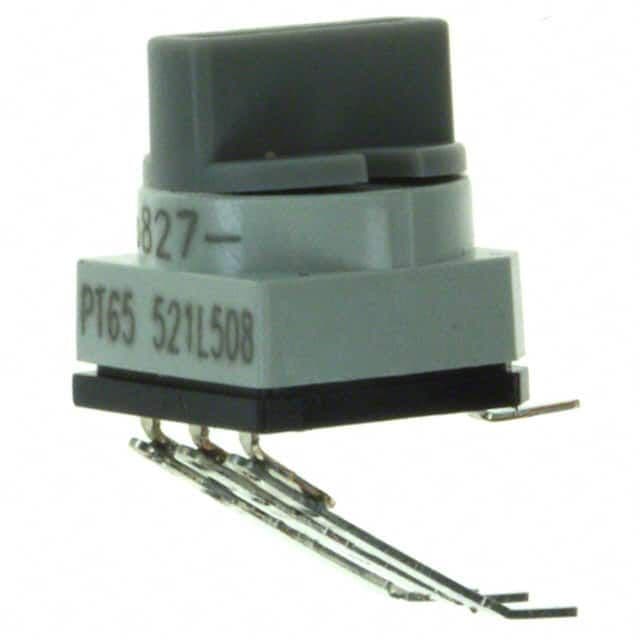

Product Images
