Apem
SLB1470R
Slide Switch, 4 Positions, SP4T, Latched, 0.3A, 30VDC, 8 PCB Hole Cnt, Solder Terminal, Through Hole-right Angle
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
Apem SLB1470R technical specifications.
General
Actuator Length
5mm
Actuator Material
Thermoplastic
Actuator Type
Standard
Contact Current Rating
300mA
Contact Plating
Silver
Electrical Life
10000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
125V
Max Voltage Rating (DC)
30V
Mount
Through Hole, Brackets
Operating Force
220gf
Orientation
Right Angle
Package Quantity
100
Packaging
Bulk
RoHS Compliant
Yes
Series
SLB
Switch Function
ON-ON-ON-ON
Switch Travel
2.3mm
Termination
PC Pin
Throw Configuration
SP4T
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
Apem SLB1470R Datasheet
Download the complete datasheet for Apem SLB1470R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

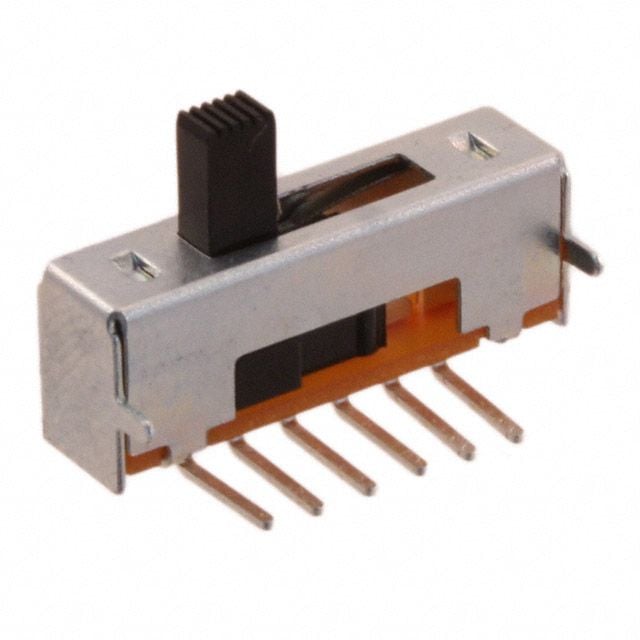

Product Images
