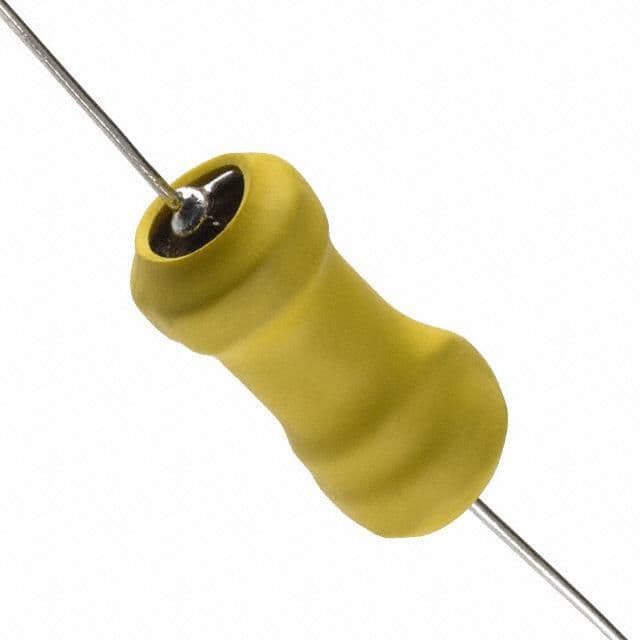

Through-hole fixed inductor featuring a ferrite core for high current filtering applications. This unshielded component offers 1mH inductance with a 10% tolerance, tested at 1kHz. It handles a maximum DC current of 890mA and has a DC resistance of 844mR. Designed with axial leads, it operates within a temperature range of -55°C to 125°C and is RoHS compliant.
PackageAxial
Resistance0.844R
MountingThrough Hole
Inductance1mH
Quick Jump:
Technical Specifications
API Delevan 4590R-105K technical specifications.
General
Package/Case
Axial
Core Material
Ferrite
DC Resistance (DCR)
844mR
Diameter
11.6mm
Inductance
1mH
Lead Free
Lead Free
Lead Length
27.9mm
Lead/Base Style
Axial
Length
22.86mm
Max DC Current
890mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Resistance
0.844R
RoHS Compliant
Yes
Saturation Current
560mA
Self Resonant Frequency
1kHz
Series
4590R
Shielding
Unshielded
Termination
Axial
Test Frequency
1kHz
Tolerance
10%
Compliance
RoHS
Compliant
