Surface mount shielded wirewound inductor with 10µH inductance and 10% tolerance. Features a 40 Q-factor at 2.5MHz test frequency, 291mA current rating, and 1.9Ω DC resistance. Encased in a 1210 (3225 metric) case code, this ferrite core component operates from -55°C to 125°C and is RoHS compliant.
Package1210
Current Rating291mA
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
API Delevan S1210R-103K technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Core Material
Ferrite
Current Rating
291mA
DC Resistance (DCR)
1.9R
Depth
2.66mm
Height
2.57mm
Inductance
10uH
Lead Free
Lead Free
Length
3.51mm
Max DC Current
291mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Q Factor
40
Radiation Hardening
No
RoHS Compliant
Yes
Self Resonant Frequency
28MHz
Series
S1210R
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
2.5MHz
Tolerance
10%
Width
2.66mm
Compliance
RoHS
Compliant
Datasheet
API Delevan S1210R-103K Datasheet
Download the complete datasheet for API Delevan S1210R-103K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

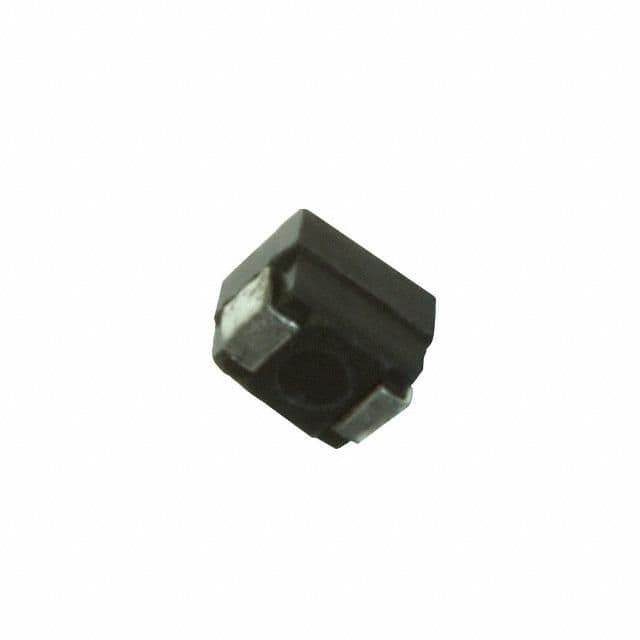

Product Images
