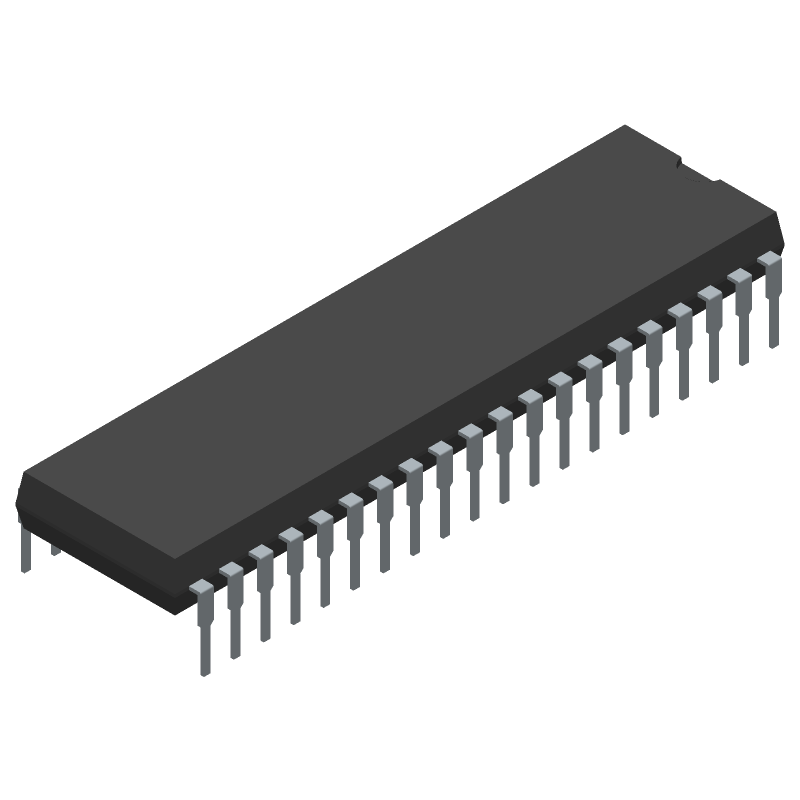

8-Bit Microcontroller, featuring an 8051 CPU core operating at a maximum clock frequency of 40MHz. This CMOS device offers 32KB of FLASH ROM and 256 bytes of RAM, with 32 programmable I/O lines. Designed for industrial temperature ranges (-40°C to 85°C), it operates from a 2.7V to 5.5V supply voltage. The microcontroller includes PWM channels and an 8-bit external data bus.
Frequency40
Quick Jump:
Technical Specifications
Atmel AT89C51RC2-3CSUM technical specifications.
General
Max Operating Temperature
85
Number of Terminals
40
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
R-PDIP-T40
Width
15.24
Length
51.75
Pin Count
40
Temperature Grade
INDUSTRIAL
Supply Current-Max
29
Supply Voltage-Nom
5
Supply Voltage-Min
2.7
Supply Voltage-Max
5.5
Clock Frequency-Max
40
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER
Number of I/O Lines
32
External Data Bus Width
8
Address Bus Width
16
Bit Size
8
Speed
40
ROM Programmability
FLASH
ROM (words)
32768
RAM (bytes)
256
PWM Channels
YES
Has ADC
NO
DMA Channels
NO
DAC Channels
NO
Compliance
RoHS
Yes
Eccn Code
3A991.A.2
Lead Free
Yes
HTS Code
8542.31.00.01
REACH
Compliant
Military Spec
False
