Aurel
650201275G
MODULE, AUREL RFT-868-3V, SERIALISED; RF Modulation:FSK; Data Rate Max:-; Frequency Max:868.3MHz; Sensitivity dBm:-100dBm; Supply Voltage Min:2.7V; Supply Voltage Max:3.6V; Transmit Power:10dBm; Module Interface:Serial, UART, USB; Supply Current:33mA; RF Transceiver Applications:Home / Industrial Automation, Remote Control; Product Range:-; Frequency Range:868.3MHz; Modulation Type:FSK; Supply Voltage Range:2.7V to 3.6V
Frequency868.3MHz
PackageModule
Current33mA
Quick Jump:
Technical Specifications
Aurel 650201275G technical specifications.
General
| Package/Case | Module |
| Max Frequency | 868.3MHz |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 33mA |
Compliance
| RoHS | Compliant |
Datasheet
Aurel 650201275G Datasheet
Download the complete datasheet for Aurel 650201275G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

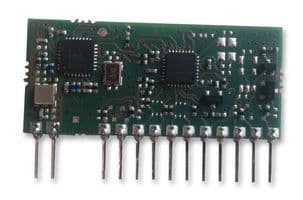

Product Images
