Isolated DC-DC converter module, 10W output power, featuring dual 12V and -12V outputs, each with 400mA current capability. Operates with input voltages from 9V to 36V, delivering regulated 12V and -12V outputs. Boasting 78% efficiency and 700V isolation voltage, this hybrid module is designed for through-hole PCB mounting. The compact package measures 51.31mm x 25.91mm x 0.42inch, with a wide operating temperature range of -40°C to 85°C.
Frequency100kHz
PackageModule
MountingThrough Hole, PCB
Power10W
Quick Jump:
Technical Specifications
BEL DFC10U24D12 technical specifications.
General
Approvals
UL
Package/Case
Module
Current - Output 1
400mA
Current - Output 2
400mA
Depth
25.91mm
Efficiency
78%
Frequency
100kHz
Height
0.42inch
Isolation
Isolated
Isolation Voltage
700V
Lead Free
Contains Lead
Length
51.31mm
Max Input Voltage
36V
Min Input Voltage
9V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Power Dissipation
10W
Mount
Through Hole, PCB
Number of Outputs
2
Output Power
10W
Output Voltage
12V
Package Quantity
300
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
DFC10
Turn-On Delay Time
20ms
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
34g
Width
1.02inch
Compliance
RoHS
Compliant
Datasheet
BEL DFC10U24D12 Datasheet
Download the complete datasheet for BEL DFC10U24D12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

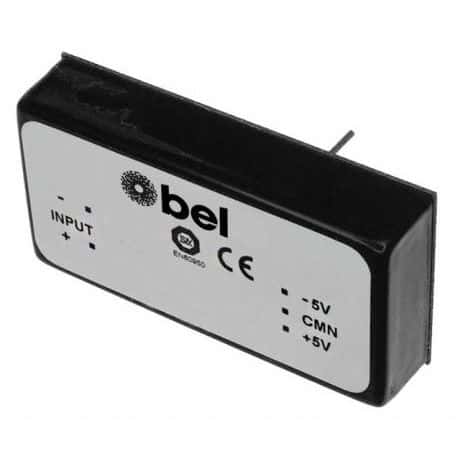

Product Images
