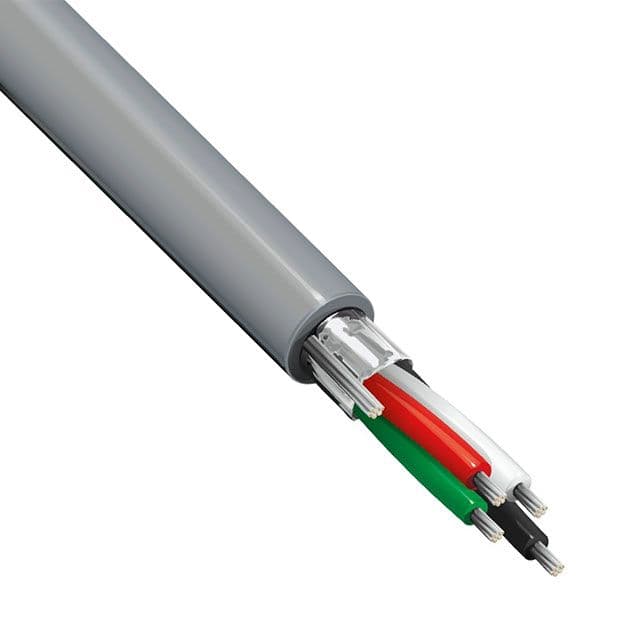

Shielded multi-conductor cable featuring 4 conductors, each 24AWG with 7x32 stranding. Constructed with copper conductors, PVC insulation, and a PVC jacket, this 100-foot cable offers a 300V rating. Operating temperature range is -30°C to 80°C. Approvals include UL, CE, and NEC.
Package100
Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Belden 9534 060100 technical specifications.
General
Approvals
UL, CE, NEC
Package/Case
100
Color
Chrome
Conductor Material
Copper
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Max Operating Temperature
80°C
Min Operating Temperature
-30°C
Mount
Cable
Number of Conductors
4
Number of Cores
4
Outside Diameter
4.674mm
Package Quantity
2
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Shielding
Shielded
Stranding
7 x 32
Voltage Rating
300V
Weight
2.7lb
Wire/Cable Gauge
24AWG
Wire/Cable Type
Multi-Conductor
Compliance
RoHS
Compliant
Datasheet
Belden 9534 060100 Datasheet
Download the complete datasheet for Belden 9534 060100 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
