Belling LEE
L1350/NI
TERMINAL BLOCK, 12WAY, 15A; Connector Type:Terminal Block, Barrier; Series:-; Connector Mounting:Panel; Pitch Spacing:7.9mm; No. of Contacts:12; Wire Size AWG Min:-; Wire Size AWG Max:-; Contact Plating:Nickel; Contact Material:Brass; SVHC:No SVHC (16-Jun-2014); Breakdown Voltage Vbr:7000V; Colour:Grey; Current Rating:15A; External Depth:13.9mm; External Length / Height:95.3mm; External Width:15.9mm; Fixing Centres LxW:11.1x7.9; Fixing Hole Diameter:2.4mm; Height:95.3mm; Insulation Resistance:1000Mohm; Mounting Type:Chassis; No. of Positions:12; Operating Temperature Max:70°C; Operating Temperature Min:-55°C; Terminal Type:Screw; Termination Method:Screw; Wire Area Size Max:4.5mm²
Current Rating15A
MountingChassis
Quick Jump:
Technical Specifications
Belling LEE L1350/NI technical specifications.
General
Color
Grey
Contact Material
Brass
Contact Plating
Nickel
Current Rating
15A
Height
95.3mm
Insulation Material
PVC
Max Operating Temperature
70°C
Min Operating Temperature
-55°C
Mount
Chassis
Number of Contacts
12
Number of Positions
12
Number of Rows
2
Reach SVHC Compliant
No
Termination
Screw
Width
15.9mm
Compliance
RoHS
Compliant
Datasheet
Belling LEE L1350/NI Datasheet
Download the complete datasheet for Belling LEE L1350/NI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

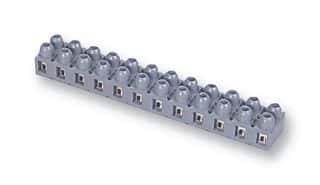

Product Images
