Frequency60Hz
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Block FL24/12 technical specifications.
General
Current Rating
1A
Depth
57mm
Flammability Rating
UL94 V-0
Isolation Voltage
5kV
Length
68mm
Max Frequency
60Hz
Min Frequency
50Hz
Max Operating Temperature
40°C
Mount
Through Hole
Number of Outputs
2
Reach SVHC Compliant
No
Weight
445g
Width
31.4mm
Compliance
RoHS
Compliant
Datasheet
Block FL24/12 Datasheet
Download the complete datasheet for Block FL24/12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

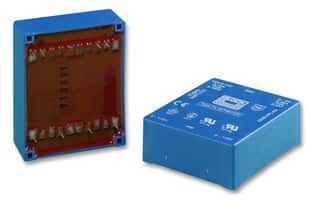

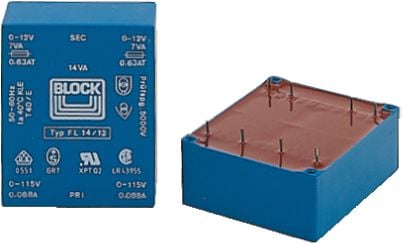

Product Images
