Block
VC16/2/9
Primary Voltage = 230 VAC / Secondary Voltage = 2x 9 VAC / Power VA = 16 / Input Frequency Min. Hz = 50 / Input Frequency Max. Hz = 60 / Efficiency % = 76 / Termination Type = PC Pins / Protection Rating = IP00 / Length mm = 57 / Width mm = 48 / Height mm = 39
MountingThrough Hole
Quick Jump:
Technical Specifications
Block VC16/2/9 technical specifications.
General
| Depth | 48mm |
| Length | 57mm |
| Max Operating Temperature | 40°C |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Weight | 420g |
| Width | 39mm |
Compliance
| RoHS | Compliant |
Datasheet
Block VC16/2/9 Datasheet
Download the complete datasheet for Block VC16/2/9 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

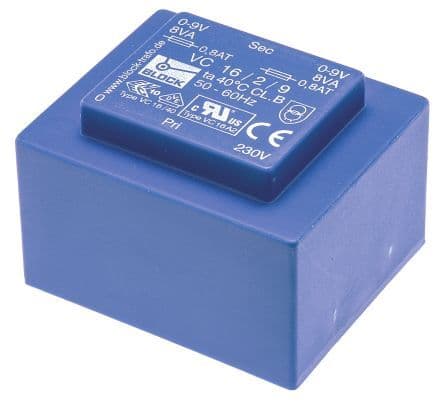

Product Images
