Shielded radial fixed inductor with 56µH inductance and 15% tolerance. Features a ferrite core, 6.4A current rating, and 26mΩ DC resistance. Operates from -55°C to 105°C with tin contact plating and through-hole mounting. RoHS compliant and designed for general purpose applications.
PackageRadial
Current Rating6.4A
MountingThrough Hole
Inductance56uH
Quick Jump:
Technical Specifications
Bourns 2210-V-RC technical specifications.
General
Package/Case
Radial
Contact Plating
Tin
Core Material
Ferrite
Current Rating
6.4A
DC Current
6.4A
DC Resistance (DCR)
26mR
Depth
13.97mm
Diameter
0.95inch
Inductance
56uH
Inductance Tolerance
15%
Lead Diameter
1.07mm
Lead Free
Lead Free
Lead Pitch
11.43mm
Lead/Base Style
Radial
Max DC Current
6.4A
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
77
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RMS Current (Irms)
6.4A
RoHS Compliant
Yes
Series
2200
Shielding
Shielded
Termination
Radial
Test Frequency
1kHz
Tolerance
15%
Width
0.55inch
Compliance
RoHS
Compliant
Datasheet
Bourns 2210-V-RC Datasheet
Download the complete datasheet for Bourns 2210-V-RC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

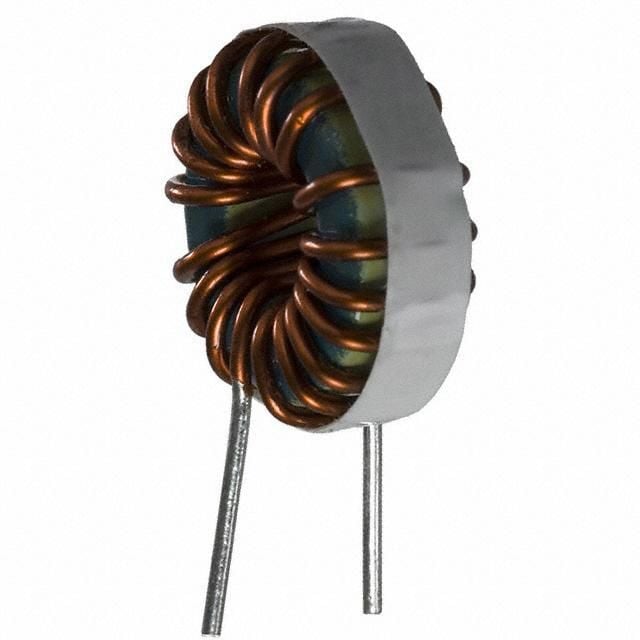

Product Images
