Technical Specifications
Bourns 3214X-1-103E technical specifications.
General
| Depth | 5.7mm |
| Height | 5.1mm |
| Length | 4.8mm |
| Max Operating Temperature | 150°C |
| Military Standard | Not |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Turns | 5 |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | Trimpot® 3214 - Sealed |
| Taper | Linear |
| Technology | CERMET |
| Termination | Gull Wing |
| Tolerance | 10% |
| Weight | 0.283g |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3214X-1-103E Datasheet
Download the complete datasheet for Bourns 3214X-1-103E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

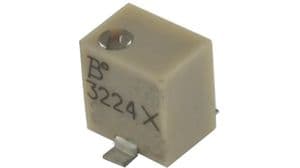

Product Images
