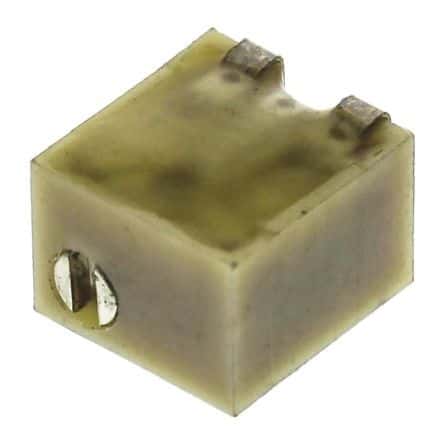

Cermet trimmer potentiometer, 1kΩ resistance with 10% tolerance, rated for 0.25W (250mW) power dissipation and 300V voltage. Features 11 electrical turns, linear taper, and J-hook SMD termination for surface mounting. Operates across a -65°C to 150°C temperature range. Packaged in tape and reel for automated assembly.
PackageSMD/SMT
Resistance1kR
Voltage Rating300V
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3224W-1-102E technical specifications.
General
Package/Case
SMD/SMT
Depth
3.9mm
Height
3.5mm
Lead Free
Lead Free
Length
4.8mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Surface Mount
Number of Turns
11
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1kR
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3224
Taper
Linear
Technology
CERMET
Termination
J-Hook
Thickness
5.59mm
Tolerance
10%
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.283g
Width
4.8mm
Compliance
RoHS
Compliant
