The Bourns Trimpot 3224 Sealed Linear 200R 10% Cermet Surface Mount resistor features a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum power dissipation of 250mW and is packaged in a tape and reel format. The resistor is RoHS compliant and has a resistance of 200R with a tolerance of 10%. It is a surface mount device with a gull wing termination and a weight of 0.283g.
Resistance200R
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3224X-1-201E technical specifications.
General
| Depth | 3.5mm |
| Height | 0.2inch |
| Length | 0.19inch |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Turns | 12 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 200R |
| Resistance Tolerance | 10% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | Trimpot® 3224 - Sealed |
| Taper | Linear |
| Technology | CERMET |
| Termination | Gull Wing |
| Tolerance | 10% |
| Weight | 0.283g |
| Width | 0.139inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3224X-1-201E Datasheet
Download the complete datasheet for Bourns 3224X-1-201E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

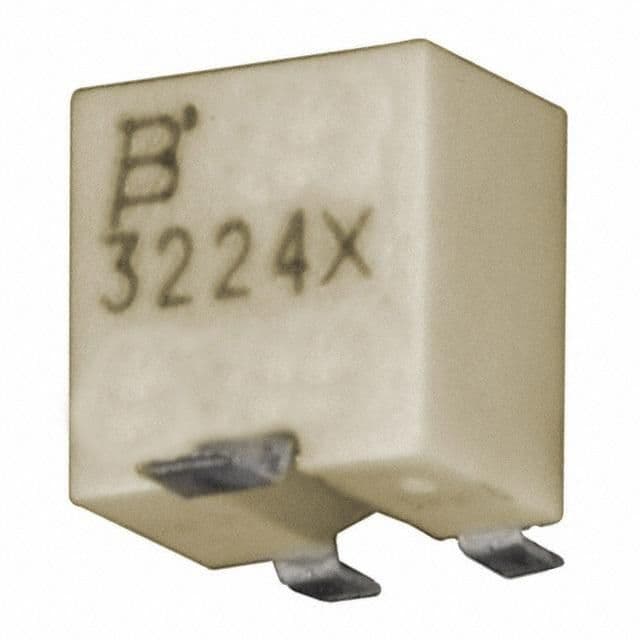

Product Images
