Cermet trimmer potentiometer, 5kΩ resistance with 10% tolerance, rated for 0.25W power dissipation and 300V voltage. Features a linear taper, 12 turns, and a vertical screw actuator. Through-hole mounting with tin-plated pins, operating from -55°C to 150°C. RoHS compliant and lead-free.
Resistance5kR
Voltage Rating300V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns 3266X-1-502LF technical specifications.
General
Actuator Orientation
Vertical
Actuator Type
SCREW
Color
Blue
Depth
4.5mm
Height
0.27inch
Lead Diameter
0.5mm
Lead Free
Lead Free
Length
7.73mm
Manufacturer Series
3266
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Military Standard
Not
Mount
Through Hole, PCB
Number of Turns
12
Package Quantity
100
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
5kR
Resistance Law
Linear
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3266
Taper
Linear
Technology
CERMET
Terminal Finish
Tin
Termination
Pin
Tolerance
10%
Type
Potentiometer
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.015oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3266X-1-502LF Datasheet
Download the complete datasheet for Bourns 3266X-1-502LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

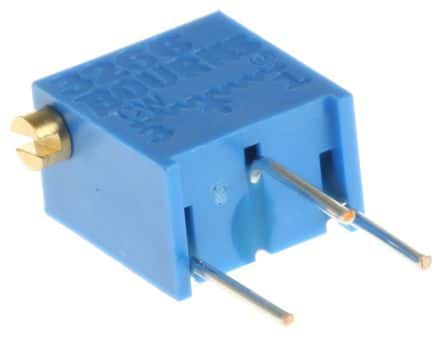

Product Images
