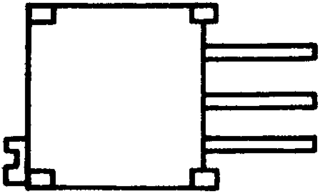

Cermet trimmer potentiometer, 0.5W power rating, 20 ohm resistance with 10% tolerance. Features a linear taper, 25 turns for precise adjustment, and a maximum operating temperature of 125°C. This through-hole mount component has a square, 3/8 inch form factor with 3 pins and a vertical screw actuator. It operates within a temperature range of -55°C to 125°C and has a voltage rating of 300V.
Resistance20R
Voltage Rating300V
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns 3296W-1-200LF technical specifications.
General
Actuator Orientation
Vertical
Actuator Type
SCREW
Color
Blue
Depth
4.83mm
Height
0.395inch
Lead Diameter
0.5mm
Lead Free
Contains Lead
Length
9.53mm
Manufacturer Series
3296
Max Operating Temperature
125°C
Max Power Dissipation
500mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Through Hole, Panel, PCB
Number of Turns
25
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
20R
Resistance Law
Linear
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
3296
Taper
Linear
Technology
CERMET
Terminal Finish
Tin
Termination
Pin
Tolerance
10%
Type
Potentiometer
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
0.03oz
Width
9.53mm
Compliance
RoHS
Compliant
Datasheet
Bourns 3296W-1-200LF Datasheet
Download the complete datasheet for Bourns 3296W-1-200LF to view detailed technical specifications.
