Conductive plastic potentiometer with 1kΩ resistance and 20% tolerance. Features a linear taper, 0.25W power dissipation, and 200V voltage rating. Designed for panel or through-hole mounting with pin terminations. Operates across a -40°C to 125°C temperature range.
Resistance1kR
Voltage Rating200V
MountingPanel, Through Hole
Quick Jump:
Technical Specifications
Bourns 3310Y-001-102L technical specifications.
General
Actuator Diameter
0.125inch
Actuator Length
0.5inch
Depth
9.53mm
Height
9.53mm
Lead Free
Lead Free
Length
9.53mm
Linearity
5%
Max Operating Temperature
125°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Panel, Through Hole
Number of Gangs
1
Number of Turns
1
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1kR
Resistance Tolerance
20%
Resistor Type
Conductive Plastic
RoHS Compliant
Yes
Series
Pro Audio 3310
Taper
Linear
Technology
CONDUCTIVE PLASTIC
Termination
Pin
Tolerance
20%
Type
Potentiometer
Voltage Rating
200V
Voltage Rating (AC)
200V
DC Rated Voltage
200V
Weight
4.5g
Compliance
RoHS
Compliant
Datasheet
Bourns 3310Y-001-102L Datasheet
Download the complete datasheet for Bourns 3310Y-001-102L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

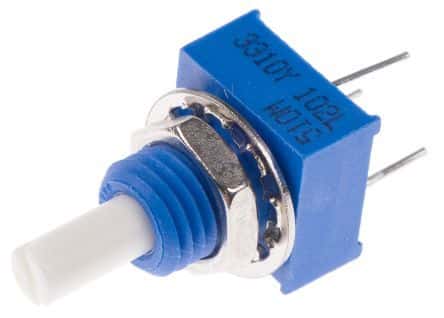

Product Images
