Cermet trimmer potentiometer, 0.25W power rating, 200kΩ resistance with 20% tolerance. Features a linear taper, single turn, and gull wing termination for surface mounting. Operates across a temperature range of -55°C to 125°C with a DC rated voltage of 300V. This RoHS compliant component is packaged on tape and reel.
Resistance200kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3314G-1-204E technical specifications.
General
Color
Natural
Depth
6.2mm
Height
0.1inch
Length
0.177inch
Max Operating Temperature
125°C
Max Power Dissipation
250mW
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Turns
1
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
200kR
Resistance Tolerance
20%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
Trimpot® 3314 - Sealed
Taper
Linear
Technology
CERMET
Termination
Gull Wing
Tolerance
20%
DC Rated Voltage
300V
Weight
0.283g
Width
0.177inch
Compliance
RoHS
Compliant
Datasheet
Bourns 3314G-1-204E Datasheet
Download the complete datasheet for Bourns 3314G-1-204E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

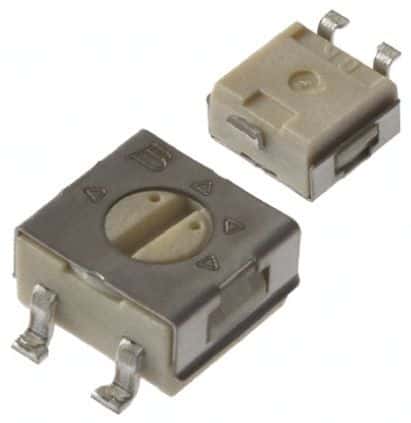

Product Images
