PackageSMD/SMT
Resistance1MR
MountingSurface Mount
Quick Jump:
Technical Specifications

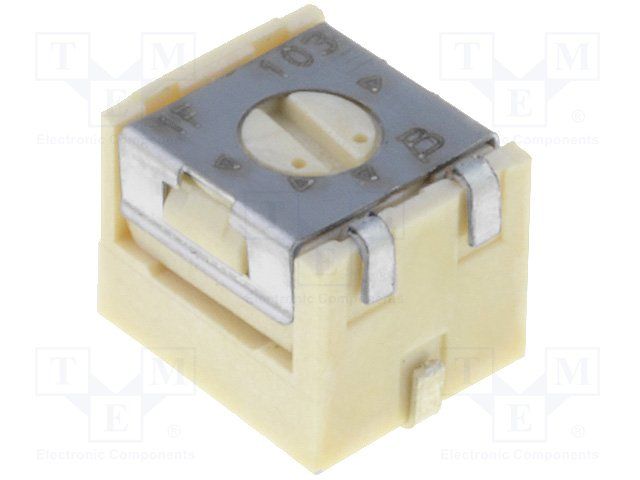

Bourns 3314S-1-105E technical specifications.
General
| Package/Case | SMD/SMT |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Turns | 1 |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Resistance | 1MR |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | Trimpot® 3314 - Sealed |
| Technology | CERMET |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Weight | 0.283g |
Compliance
| RoHS | Compliant |
Datasheet
Bourns 3314S-1-105E Datasheet
Download the complete datasheet for Bourns 3314S-1-105E to view detailed technical specifications.
No datasheet is available for this part.
