Surface mount variable resistor featuring a 500 Ohm resistance with a 25% tolerance. This cermet trimmer offers a 200mW power dissipation and a linear taper, operating across a temperature range of -40°C to 100°C. Designed with J-leads for top adjustment, it is packaged in tape and reel for automated assembly.
Resistance500R
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns 3364W-1-501E technical specifications.
General
Color
Silver
Depth
4.5mm
Height
0.059inch
Lead Free
Lead Free
Length
0.177inch
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
200mW
Mount
Surface Mount
Number of Turns
1
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resistance
500R
Resistance Tolerance
25%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
Trimpot® 3364 - Open Frame
Taper
Linear
Technology
CERMET
Termination
SMD/SMT
Tolerance
25%
Weight
564mg
Width
0.15inch
Compliance
RoHS
Compliant
Datasheet
Bourns 3364W-1-501E Datasheet
Download the complete datasheet for Bourns 3364W-1-501E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

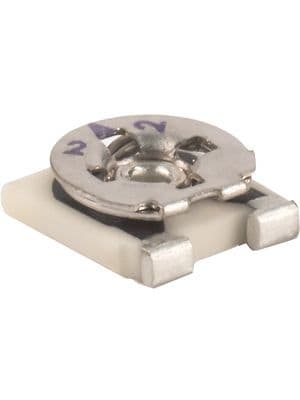

Product Images
