Cermet trimmer potentiometer, 0.5W power dissipation, 20kΩ resistance, 10% tolerance, and linear taper. Features a single turn, horizontal actuator with screw adjustment, through-hole PCB mounting, and tin terminal finish. Operates within a -55°C to 125°C temperature range with a 300V DC rating. This sealed trimmer is RoHS compliant.
Resistance20kR
Voltage Rating300V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns 3386W-1-203LF technical specifications.
General
Actuator Orientation
Horizontal
Actuator Type
SCREW
Color
Blue
Depth
4.83mm
Height
0.375inch
Lead Diameter
0.5mm
Lead Free
Lead Free
Length
9.53mm
Manufacturer Series
3386
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Through Hole, PCB
Number of Turns
1
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
20kR
Resistance Law
Linear
Resistance Tolerance
10%
Resistor Type
Cermet
RoHS Compliant
Yes
Series
Trimpot® 3386 - Sealed
Taper
Linear
Technology
CERMET
Terminal Finish
Tin
Termination
Pin
Tolerance
10%
Type
Potentiometer
Voltage Rating
300V
DC Rated Voltage
300V
Weight
0.03oz
Width
0.155inch
Compliance
RoHS
Compliant
Datasheet
Bourns 3386W-1-203LF Datasheet
Download the complete datasheet for Bourns 3386W-1-203LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

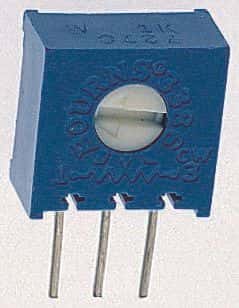

Product Images
