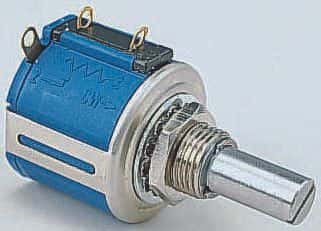

Wirewound potentiometer featuring 1kΩ resistance with a 5% tolerance. This 10-turn unit offers 0.25% linearity and a 2W power rating. Constructed with a metal package and gold contact plating, it operates within a -40°C to 125°C temperature range. Designed for panel mounting with solder terminations.
PackageMetal
Resistance1kR
MountingPanel
Quick Jump:
Technical Specifications
Bourns 3540S-1-102L technical specifications.
General
Actuator Diameter
0.2497inch
Actuator Length
0.812inch
Package/Case
Metal
Contact Plating
Gold
Diameter
22.23mm
Height
26.99mm
Length
39.67mm
Linearity
0.25%
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
2W
Military Standard
Not
Mount
Panel
Number of Gangs
1
Number of Turns
10
Package Quantity
5
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1kR
Resistance Tolerance
5%
Resistor Type
Wirewound
RoHS Compliant
Yes
Series
3540
Taper
Linear
Termination
Solder
Tolerance
5%
Type
Potentiometer
DC Rated Voltage
500V
Weight
21g
Compliance
RoHS
Compliant
Datasheet
Bourns 3540S-1-102L Datasheet
Download the complete datasheet for Bourns 3540S-1-102L to view detailed technical specifications.
